Description

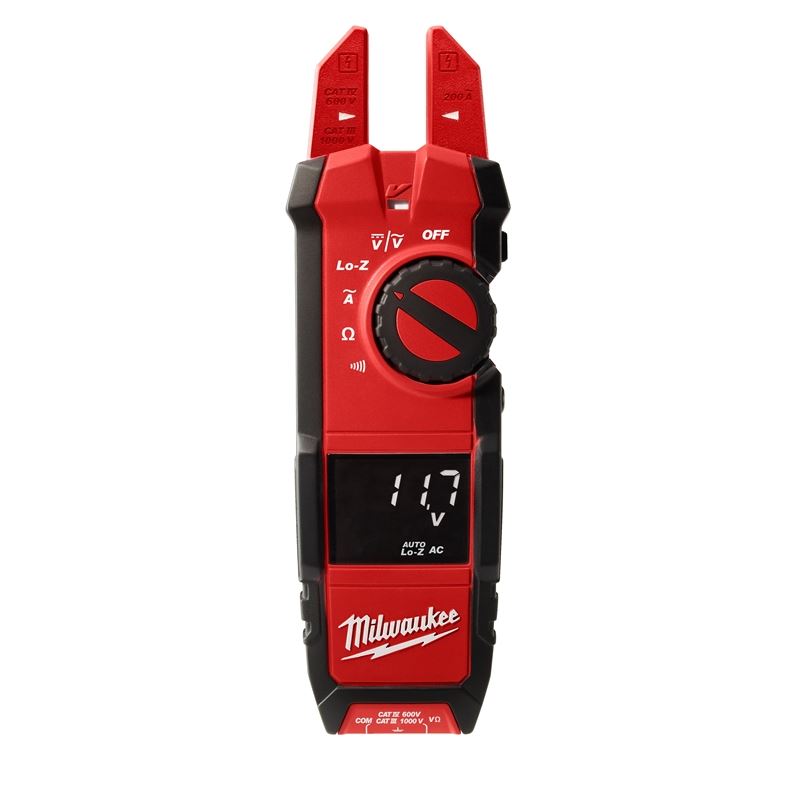

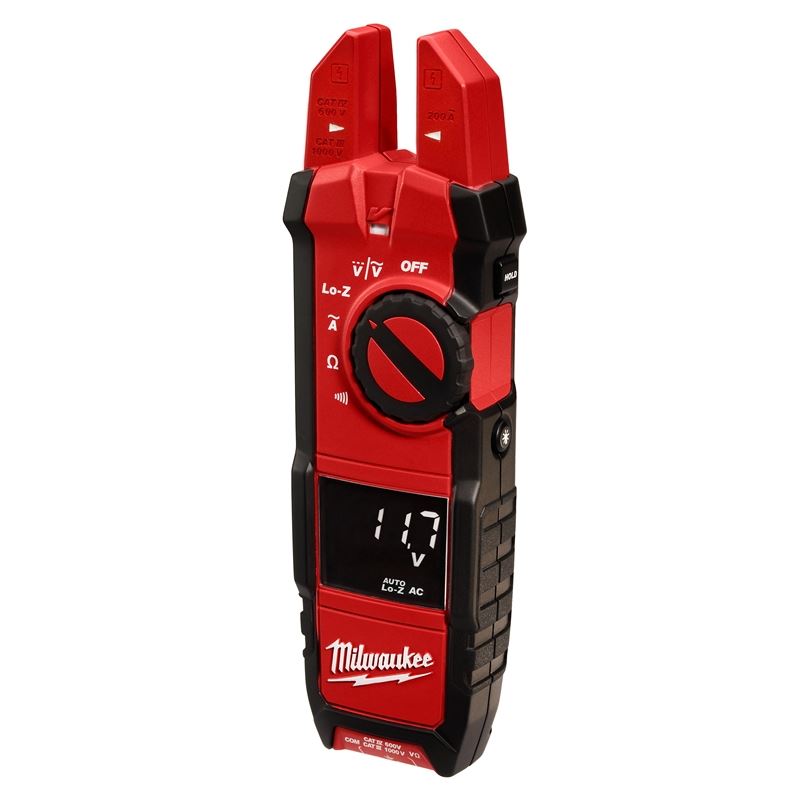

The Milwaukee fork meter is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2205-20 is four tools in one providing current measurement, voltage measurement, voltage detection and task lighting. Additionally, the new tool provides a wide 0.63 in. fork opening, high 200 amp current range and a high contrast white-on-black display.
(1) Fork Meter (2205-20), (1) Test Lead SetTest Lead Set, (2) AA BatteriesAA Batteries, (1) ManualManual Measures up to 200 amps, Wide 0.63 in. jaw opening
features:
Measures up to 200 A, wide 0.63 in. jaw opening
Wide voltage range to 1000 V AC /DC
True-RMS for accurate measurement in all applications
Lo-z measurement to eliminate ghost voltage
Built-in voltage detector and LED work light
High contrast, white on black display with backlight for easy reading
Rugged over-molding increases durability and user grip
Cat IV 600 V / cat III 1000 V for greater safety
Specifications
| General Switch Type | Dial |
|---|---|
| Power Source | Cordless |
| Display Type | White on Black LCD |
| Battery. Type | Alkaline (AA) |
| Length | 8" |
| Tool Warranty | 5 Years |
| Voltage AC / DC | 1000 V |
| Current AC | 200A |
| Fork Opening | .63" |
| TRMS | Yes |
| Safety Rating | CAT IV 600V / CAT III 1000V |
| Lo-Z Measurement | Yes |
| Resistance | 40M |
| Continuity | Audible |
| Display Backlight | Yes |
| Non-Contact Voltage | Yes |
| LED Work Light | Yes |
| Rugged Over-Molding | Yes |
| Product Type | Electrical Testers |
2205-20 Fork Meter
The Milwaukee fork meter is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2205-20 is four tools in one providing current measurement, voltage measurement, voltage detection and task lighting. Additionally, the new tool provides a wide 0.63 in. fork opening, high 200 amp current range and a high contrast white-on-black display.
(1) Fork Meter (2205-20), (1) Test Lead SetTest Lead Set, (2) AA BatteriesAA Batteries, (1) ManualManual Measures up to 200 amps, Wide 0.63 in. jaw opening
